【SharePoint】タイムラインチャートを作成する

f:id:tecchan365:20200423173937p:plain

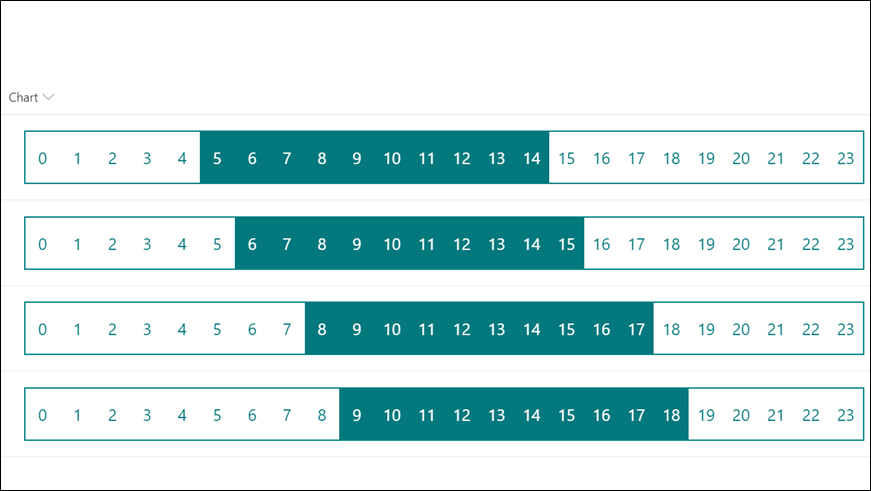

列の書式設定を利用し、以下のようなタイムラインチャートを表示する方法を記載します。

リスト作成

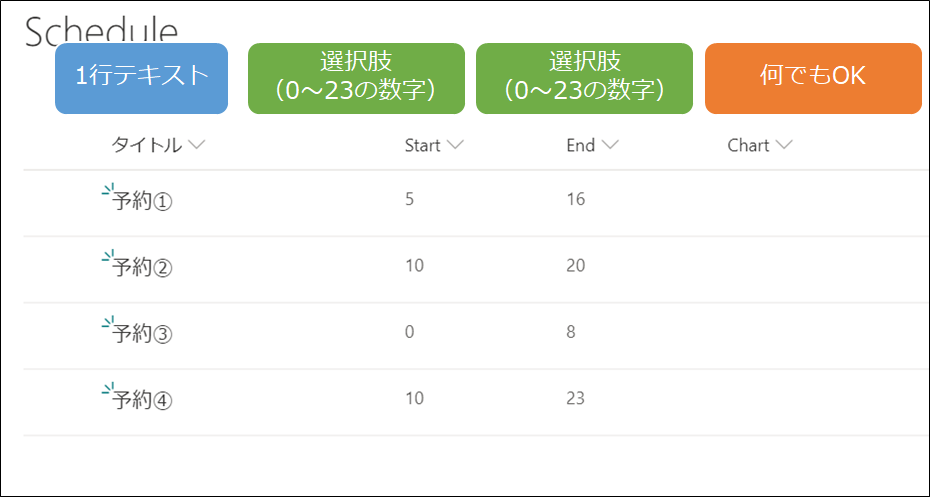

以下のリストを作成します。

f:id:tecchan365:20200423174350p:plain

列の書式設定

[Chart] 列の書式設定に、以下のコードを入力します。

{
  "$schema": "https://developer.microsoft.com/json-schemas/sp/column-formatting.schema.json",
  "elmType": "div",
  "style": {
    "display": "flex",
    "flex-direction": "row",
    "border": "1px solid #038387",
    "margin": "10px",
    "height": "50px"
  },
  "children": [
    {
      "elmType": "div",
      "txtContent": "0",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=0 , if([$End]>=0,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "1",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=1 , if([$End]>=1,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "2",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=2 , if([$End]>=2,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "3",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=3 , if([$End]>=3,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "4",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=4 , if([$End]>=4,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "5",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=5 , if([$End]>=5,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "6",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=6 , if([$End]>=6,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "7",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=7 , if([$End]>=7,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "8",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=8 , if([$End]>=8,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "9",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=9 , if([$End]>=9,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "10",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=10 , if([$End]>=10,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "11",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=11 , if([$End]>=11,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "12",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=12 , if([$End]>=12,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "13",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=13 , if([$End]>=13,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "14",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=14 , if([$End]>=14,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "15",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=15 , if([$End]>=15,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "16",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=16 , if([$End]>=16,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "17",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=17 , if([$End]>=17,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "18",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=18 , if([$End]>=18,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "19",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=19 , if([$End]>=19,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "20",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=20 , if([$End]>=20,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "21",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=21 , if([$End]>=21,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "22",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=22 , if([$End]>=22,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    },
    {
      "elmType": "div",
      "txtContent": "23",
      "style": {
        "display": "flex",
        "width": "4.17%",
        "height": "100%",
        "justify-content": "center",
        "align-items": "center",
        "font-size": "12pt"
      },
      "attributes": {
        "class": "=if([$Start]<=23 , if([$End]>=23,'ms-bgColor-themePrimary ms-fontColor-white','ms-fontColor-themePrimary'),'ms-fontColor-themePrimary')"
      }
    }
  ]
}

以上で、作成完了です!
